AISI410S Hexmetal for Tanks Stacks Lining | 19mm Depth | 1.5mm thickness strip | 3'X10' sheet - HESLY China Factory

Name: AISI410S Hexmetal for Tanks Stacks Lining 19mm Depth 15mm thickness strip 3X10 sheet HESLY China Factory
Brand: HESLY
Price: 1 USD

Wholesale AISI410S Hexmetal for Tanks Stacks Lining | 19mm Depth | 1.5mm thickness strip | 3'X10' sheet - HESLY China Factory from china suppliers

Brand Name : HESLY

Model Number : H-GJ202050310S

Certification : ISO9001：2008

Place of Origin : HESLY METAL MESH, Anping, China

MOQ : 1 ㎡

Price : Negotiated according to the order

Payment Terms : T/T, L/C at sight, D/P, Western Union

Supply Ability : 800㎡/day

Delivery Time : according to the order (in stock)

Packaging Details : Pallet

Material : 410S,304,304H,310S, Carbon Steel

Technical : Perforating & Riveting

Gauge : 12#, 14#, 16# etc.

Thickness : 3/4", 1", 2" etc

Standard Panel Size : 36"X120" (914X3050mm)

Package : Steel Pallet

Contact Now

AISI410S Hexmetal for Tanks Stacks Lining | 19mm Depth | 1.5mm thickness strip | 3'X10' sheet - HESLY China Factory

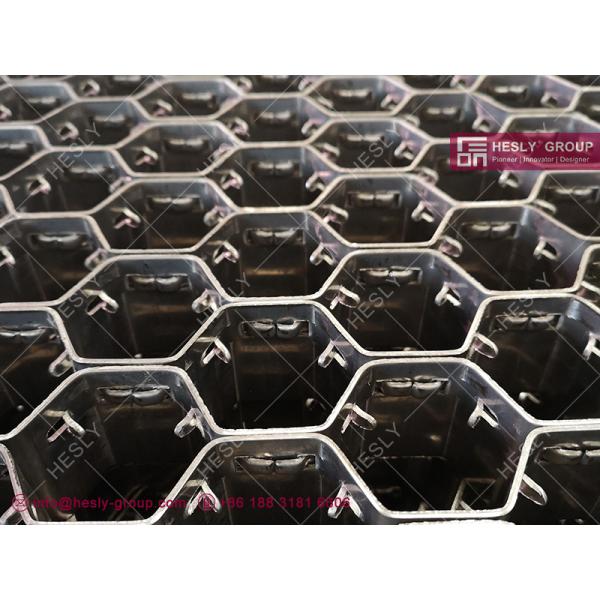

Hesly's Hex Metal Grating is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of Hex Metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the surface material because they are reflected away from the surface by the metal cellular grid.

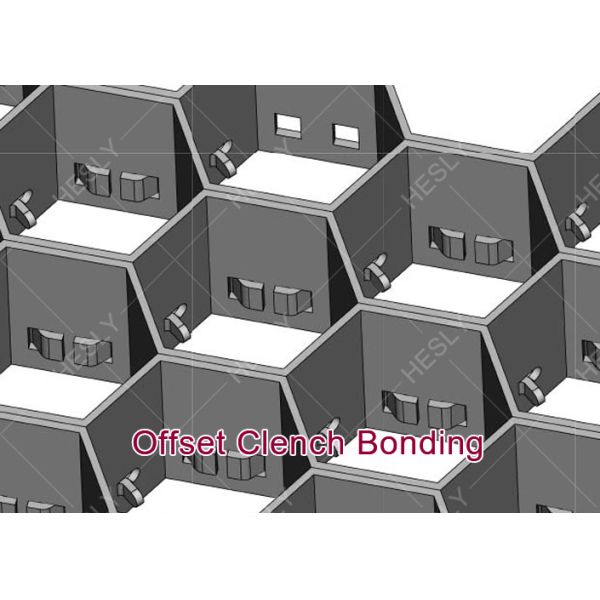

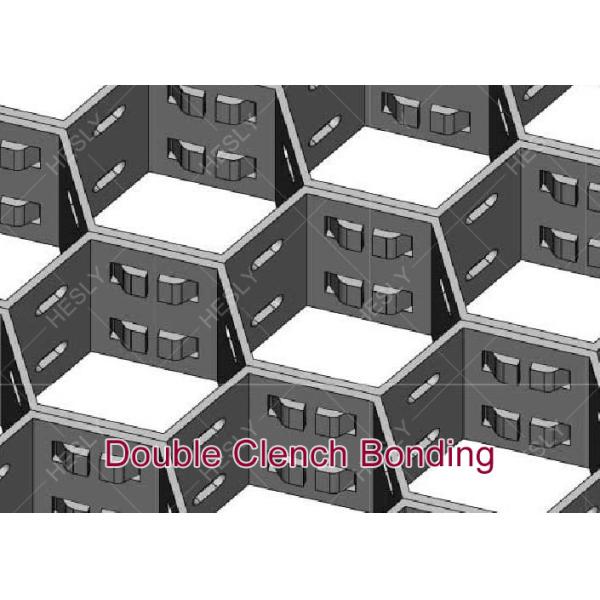

Hexsteel: Bonding Hole Type Instead of lance tabs, holes are punched through the walls of the hexmetal cell. Refractory can then flow through these holes to achieve a bond from one cell to another.	Hex-metal: Prongs/Lances Type this style has lance tabs protruding from the walls of the hexagonal cell to act as anchorage for the refractory.

HESLY China Hexmetal Factory	HESLY China Hexmesh Factory

HESLY hexsteel Typical Service Temperature

Anchorage Material		Chemical Composition								Typical Service Temperature
AISI	DIN	C%	Si%	Mn%	P%	S%	Cr%	Ni%	others	Typical Service Temperature
304	1.4301	≤0.08	≤1.00	≤2.00	≤0.45	≤0.30	18.0—20.0	8.0—10.0	N	800℃
316	1.4401/1.4436	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	16.0—18.0	10.0—14.0	N:Mo	800℃
321	1.4541	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	17.0—19.0	9.0—12.0	Ti	800℃
310S	1.4845	≤0.08	≤1.50	≤2.00	≤0.45	≤0.30	24.0—26.0	19.0—22.0	—	1150℃
Inconel 601	2.4851	≤0.10	≤0.50	≤1.00	—	≤0.15	21.0—25.0	58.0—63.0	Al:Cu	1200℃
Inconel 800	1.4876	≤0.10	≤1.00	≤1.50	≤0.45	≤0.15	19.0—23.0	30.0—35.0	Al:Ti	1200℃
410S	1.4001	≤0.08	≤1.00	≤1.00	≤0.40	≤0.30	11.5—13.5	≤0.60	—	750℃
CARBON STEEL		VARIOUS								550℃

Common Specification Sheet

ITEM	SPECS		B	A	AF
1	1.2 X 10 X 50mm		1.2mm	10mm	40mm
2	1.2 X 15 X 50mm		1.2mm	15mm	50mm
3	1.2 X 20 X 50mm		1.2mm	20mm	50mm
4	1.5 X 10 X 50mm		1.5mm	10mm	50mm
5	1.5 X 15 X 50mm		1.5mm	15mm	50mm
6	1.5 X 20 X 50mm		1.5mm	20mm	50mm
7	1.8 X 15 X 50mm		1.8mm	15mm	50mm
8	1.8 X 20 X 50mm		1.8mm	20mm	50mm
9	1.8 X 25 X 50mm		1.8mm	25mm	50mm
10	2.0 X 15 X 50mm		2.0mm	15mm	50mm
11	2.0 X 20 X 50mm		2.0mm	20mm	50mm
12	2.0 X 25 X 50mm		2.0mm	25mm	50mm
13	2.0 X 30 X 50mm		2.0mm	30mm	50mm
14	2.0 X 30 X 80mm		2.0mm	30mm	80mm
Remark	A/F	Min: 40mm Max: 100mm
	MATERIAL	A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S

Hexmetal Gallery

**Photo Gallery - HESLY Hexsteel Mesh**

AISI310 Hex Metal Mesh	310S Hexmesh China Factory

Offset HexMesh Factory	HESLY Hexmetal

Hexsteel Refractory Linings	Hex Steel Mesh China Factory

Package and Delivery


China Hexmesh Factory	China Hexmetal Exporter
