Stainless Steel 310S Hexsteel Refractory Lining | 19mm deep | 14ga thickness | 60mm hexagonal hole | China HESLY Plant

Name: Stainless Steel 310S Hexsteel Refractory Lining 19mm deep 14ga thickness 60mm hexagonal hole China HESLY Plant
Brand: HESLY
Price: 50.00 USD

Brand Name : HESLY

Model Number : HEX219310S

Certification : ISO9001：2008

Place of Origin : HESLY METAL MESH, Anping, China

MOQ : 50 ㎡

Price : US$50.00-US$360.00

Payment Terms : TT/LC

Supply Ability : 800㎡/day

Delivery Time : 20days/20'GP

Packaging Details : Pallet

Material : ss310s, 0Cr25Ni20, Din1.4835

thickness : 14G(2.0mm)

height : 19mm, 20mm, 25mm,30mm, 50mm, 60mm

opening : 40mm, 50mm, 60mm

Contact Now

Stainless Steel 310S Hexsteel Refractory Lining | 19mm deep | 14ga thickness | 60mm hexagonal hole | China HESLY Plant

Hex metal refractory lining is a hexagonal cellular mesh grating specifically designed for reinforcing both linings and flooring. The hex steel mesh acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining's upper crust, which prevents spalling and cracking. As a result of hex metal's strength and unique design, abrasion and corrosion are retarded and refractory life is significantly extended. Even hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal cellular grid.

Hexsteel is put to use in many industries including power plants, chemical industry, cement plants, steel, petroleum, power generation and other large devices. Hex material can largely improve the heat erosion and abrasion resistance.

Hexsteel metal is flexible and easily conforms to circular shapes, which allows it to be rolled. It is ideal for lining ducts, furnaces, reactor vessels, cyclones, flue gas lines and other high temperature equipment of virtually any shape or configuration.

Range of carbon steel in stock and ready to go including stainless steel 304, 310,410S and 253MA. Other materials can be supplied on request.

$Stainless Steel 310S Hexsteel Refractory Lining \| 19mm deep \| 14ga thickness \| 60mm hexagonal hole \| China HESLY Plant$	$Stainless Steel 310S Hexsteel Refractory Lining \| 19mm deep \| 14ga thickness \| 60mm hexagonal hole \| China HESLY Plant$
Hexmesh: Bonding Hole Type	Hex-mesh: Pronges Type

Application of HESLY Hex mesh grid:

As refractories, hex steel mesh has Flexibility, high strength and erosion resistant characteristics. Hex steel mesh is an excellent choice of refractory linings in furnaces, reactors, cyclones, ducts and flues. It is mainly used in power plant, cement plant, Steel, petroleum, chemical industry, power generation and other large devices. The hex metal can largely improve the heat erosion and abrasion resistance.
Hex mesh used for floors, hex mesh provides long term protection for armor applications in industrial floors. Specifically: Loading docks, ramps, high traffic aisles for forklifts and trucks, hot floors for foundry, forge and steel mills, refuse disposal plant floors and almost anywhere floors are subject to severe impact and rolling loads will benefit with Hex mesh.
Since Hex Metal's flexibility allows it to be rolled, it easily conforms to circular shapes. It is ideal for lining Ducts, Furnaces, Reactor Vessels, Cyclones, Flue Gas Lines and other high temperature equipment of virtually any shape or configuration. Hex metal and flex metal refractory linings are both flexible, mesh grating used in reinforcing linings, floors and any cement structures needing added support.

Typical Service Temperature

Anchorage Material		Chemical Composition								Typical Service Temperature
AISI	DIN	C%	Si%	Mn%	P%	S%	Cr%	Ni%	others	Typical Service Temperature
304	1.4301	≤0.08	≤1.00	≤2.00	≤0.45	≤0.30	18.0—20.0	8.0—10.0	N	800℃
316	1.4401/1.4436	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	16.0—18.0	10.0—14.0	N:Mo	800℃
321	1.4541	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	17.0—19.0	9.0—12.0	Ti	800℃
310S	1.4845	≤0.08	≤1.50	≤2.00	≤0.45	≤0.30	24.0—26.0	19.0—22.0	—	1150℃
Inconel 601	2.4851	≤0.10	≤0.50	≤1.00	—	≤0.15	21.0—25.0	58.0—63.0	Al:Cu	1200℃
Inconel 800	1.4876	≤0.10	≤1.00	≤1.50	≤0.45	≤0.15	19.0—23.0	30.0—35.0	Al:Ti	1200℃
410S	1.4001	≤0.08	≤1.00	≤1.00	≤0.40	≤0.30	11.5—13.5	≤0.60	—	750℃
CARBON STEEL		VARIOUS								550℃

Common Specification Sheet

ITEM	SPECS		B	A	AF
1	1.2 X 10 X 50mm		1.2mm	10mm	40mm
2	1.2 X 15 X 50mm		1.2mm	15mm	50mm
3	1.2 X 20 X 50mm		1.2mm	20mm	50mm
4	1.5 X 10 X 50mm		1.5mm	10mm	50mm
5	1.5 X 15 X 50mm		1.5mm	15mm	50mm
6	1.5 X 20 X 50mm		1.5mm	20mm	50mm
7	1.8 X 15 X 50mm		1.8mm	15mm	50mm
8	1.8 X 20 X 50mm		1.8mm	20mm	50mm
9	1.8 X 25 X 50mm		1.8mm	25mm	50mm
10	2.0 X 15 X 50mm		2.0mm	15mm	50mm
11	2.0 X 20 X 50mm		2.0mm	20mm	50mm
12	2.0 X 25 X 50mm		2.0mm	25mm	50mm
13	2.0 X 30 X 50mm		2.0mm	30mm	50mm
14	2.0 X 30 X 80mm		2.0mm	30mm	80mm
15	2.0 X 40 X 50mm		2.0mm	40mm	50mm
16	2.0 X 50 X 50mm		2.0mm	50mm	50mm
Remark	A/F	Min: 40mm Max: 100mm
	MATERIAL	A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S

Photo Gallery - HEXSTEEL

**Photo Gallery - HESLY Hexsteel Mesh**
$Stainless Steel 310S Hexsteel Refractory Lining \| 19mm deep \| 14ga thickness \| 60mm hexagonal hole \| China HESLY Plant$	$Stainless Steel 310S Hexsteel Refractory Lining \| 19mm deep \| 14ga thickness \| 60mm hexagonal hole \| China HESLY Plant$
310S Refractory Hexsteel	offset clench Hexsteel
$Stainless Steel 310S Hexsteel Refractory Lining \| 19mm deep \| 14ga thickness \| 60mm hexagonal hole \| China HESLY Plant$	$Stainless Steel 310S Hexsteel Refractory Lining \| 19mm deep \| 14ga thickness \| 60mm hexagonal hole \| China HESLY Plant$

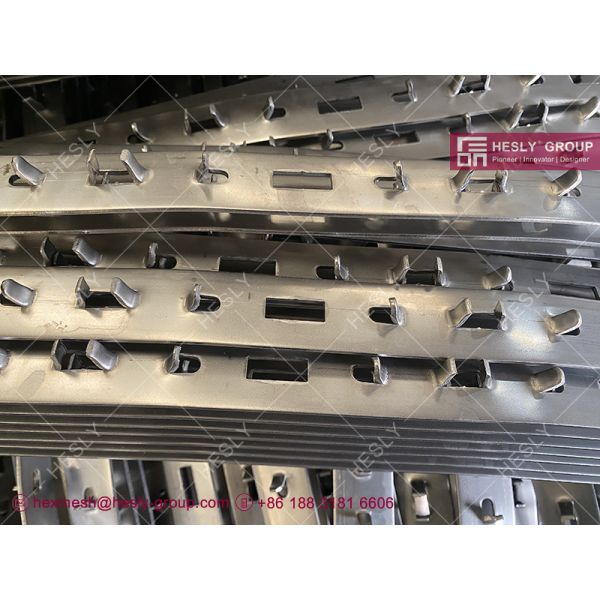

310S Hexsteel Refractory Lining	Hexmetal Mesh Strips

Package and Delivery

$Stainless Steel 310S Hexsteel Refractory Lining \| 19mm deep \| 14ga thickness \| 60mm hexagonal hole \| China HESLY Plant$	$Stainless Steel 310S Hexsteel Refractory Lining \| 19mm deep \| 14ga thickness \| 60mm hexagonal hole \| China HESLY Plant$
China Hexmetal Factory	China Hexmetal Exporter
